What is Oil-Water Separation (Housing and Element) for Hydrocarbon Liquid?
Hydrocarbon liquid is mainly used as detergent liquid for washing machine. Such
detergent liquid is mixed with water and contaminants which may come out from
washing objects. The Element in Oil-Water Separation for Hydrocarbon Liquid is
the water-film type separation filter which separates water without fail from
the hydrocarbon liquid.
Picture(left)／OW-06A
Picture(right)／OW-30A

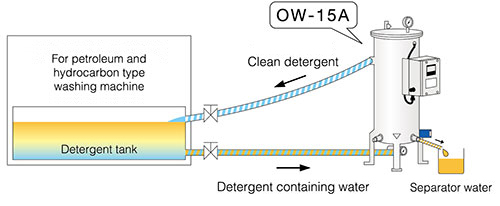

Oil-Water Separator: System Structure of Cleaner for Hydrocarbon Liquid
Benefits
Low pressure loss, and achieves high economical efficiency.
Long Life
Achieves excellent Oil-Water Separation.
Keeps oil clean all the time
Structure
Element for Hydrocarbon-type Detergent Liquid
Sun Separator Element is the coalescer-type element which separates water contained
in hydrocarbon-type detergent liquid. It helps make the time interval of changing the
detergent liquid longer and prevent residual water attached on the surface of washing
objects from getting contaminated.
Picture(left)／S-06
Picture(right)／S-15
Line-up of Element for Hydrocarbon-type Detergent Liquid
Element Type
S-06
S-15
Separation Method
Coarsening Method
Flow Rate(Liters/min)
Less than 6
Less than 15
Filtration Accuracy
2μ
Material
SUS-304
Size
Φ70mm×Φ30mm×250㎜
Φ150mm×Φ76mm×360㎜
Features of Element for Hydrocarbon-type Detergent Liquid
